HB microtec - steht für hoher Benefit in der "micro"-Zerspanungstechnologie!

Entgraten

Die HB microtec® bietet mit den ACTIONMILL® Chamfer und TARGETMILL® Chamfer ein komplettes Entgratfräserprogramm an. Es ergänzt sich optimal und bietet für jede Operation das ideale Entgratwerkzeug. So lässt sich beispielsweise beim Abzeilen, mit dem ACTIONMILL Lollipop®, wertvolle Produktionszeit durch vollumfängliches Entgraten an der Maschine einsparen.

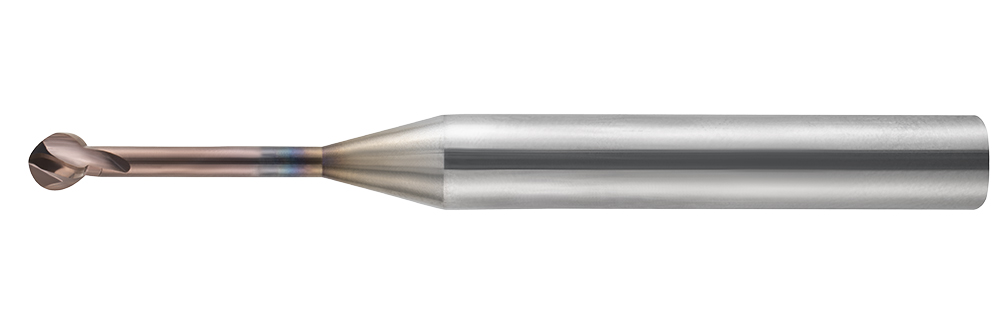

INOX-Lollipop
INOX-Lollipop

INOX-Lollipop

Summary:

  • Ø0.8 to Ø10 with 305° cutting circumference
  • Milling (deburring) of demanding and complex contours
  • Deburring, chamfering or line milling with one tool
  • No secondary burrs thanks to the 3 teeth
TITAN-Lollipop
TITAN-Lollipop

TITAN-Lollipop

Summary:

  • Ø0.8 to Ø10 with 305° cutting circumference
  • Milling (deburring) of demanding and complex contours
  • Deburring, chamfering or line milling with one tool
  • No secondary burrs thanks to the 3 teeth
ACTIONMILL INOX Lollipop-Z4 260° cooled
ACTIONMILL INOX Lollipop-Z4 260° cooled

ACTIONMILL INOX Lollipop-Z4 260° cooled

Summary:

  • Available from Ø1.0 – Ø10.0 with 4 teeth
  • Shorter process times and high process reliability
  • Undercuts possible thanks to 260° cutting-edge wrap
  • Integrated coolant prevents chip jams
INOX-Quarter-Chamfer Z2
INOX-Quarter-Chamfer Z2

INOX-Quarter-Chamfer Z2

Summary:

  • INOX quarter-circle cutter from R 0.2 mm to R 3.0 mm
  • Mill radii instantly, no more line milling needed
  • Thanks to the 4°-6° runout at both ends, no secondary burrs arise
  • Chromium-free coatings
INOX-Quarter-Chamfer Z3
INOX-Quarter-Chamfer Z3

INOX-Quarter-Chamfer Z3

Summary:

  • INOX quarter-circle cutter from R 0.2 mm to R 3.0 mm
  • Mill radii instantly, no more line milling needed
  • Thanks to the 4°-6° runout at both ends, no secondary burrs arise
  • Chromium-free coatings
ACTIONMILL micro INOX Ball cooled
ACTIONMILL micro INOX Ball cooled

ACTIONMILL micro INOX Ball cooled

Summary:

  • Available from Ø0.2 in 3xD and 5xD
  • 3xD short + rigid variant, internally cooled micro cutter
  • Very long tool life (cutting across centre)
  • Chromium-free coatings
TARGETMILL Double-Chamfer
TARGETMILL Double-Chamfer

TARGETMILL Double-Chamfer

Summary:

  • From Ø1.8 mm to Ø6 mm with 90°
  • High flexibility in application variety
  • 3 to 4 teeth (cutting edges) deliver excellent surface quality
  • Chromium-free coatings
ACTIONMILL micro-Front-Chamfer
ACTIONMILL micro-Front-Chamfer

ACTIONMILL micro-Front-Chamfer

Summary:

  • Deburring and chamfering of edges, grooves, holes and threads
  • Reinforced design for long service life
  • Universally applicable across the most diverse materials
  • Chromium-free coatings
ACTIONMILL INOX-Front-Chamfer
ACTIONMILL INOX-Front-Chamfer

ACTIONMILL INOX-Front-Chamfer

Summary:

  • Deburring and chamfering of edges, grooves, holes and threads
  • Reinforced design for long service life
  • 4 to 6 teeth deliver excellent surface quality
  • Chromium-free coatings
ACTIONMILL Double-Chamfer
ACTIONMILL Double-Chamfer

ACTIONMILL Double-Chamfer

Summary:

  • From Ø0.9 mm to Ø5.7 mm with 90°
  • Very high application versatility and flexibility
  • 5 to 6 teeth (cutting edges) enable high feed rates
  • Chromium-free coatings
ACTIONMILL Back-Chamfer
ACTIONMILL Back-Chamfer

ACTIONMILL Back-Chamfer

Summary:

  • From Ø0.36 mm to Ø5.7 mm with 90°
  • Backward-deburring tool for holes from Ø 0.4 mm
  • 3 to 6 teeth (cutting edges) enable high feed rates
  • Chromium-free coatings

Entgraten

Die HB microtec® bietet mit den ACTIONMILL® Chamfer und TARGETMILL® Chamfer ein komplettes Entgratfräserprogramm an. Das HB microtec® Entgratfräserprogramm ergänzt sich optimal und bietet für jede Operation das ideale Entgratwerkzeug.

Schneidwerkzeuge 2026

Als Spezialisten für Zerspanung präsentieren wir immer wieder richtungsweisende Fertigungsprozesse und Werkzeuge, immer dann, wenn Bauteile aus harten, warmfesten und abrasiven Werkstoffen wie Kobalt-Chrom-, Nickel- und Titanlegierungen zu fertigen sind.
Wesentlich wirtschaftlicher und zuverlässiger als bisher gelingt das mit unseren neuen Standardwerkzeugen. Dabei können Kunden auf unsere herausragende Kompetenz vertrauen.

Triple-Function

Kurzbeschreibung:

  • Dreifache Fräsfunktion
  • Hochleistungsgeometrien
  • Universell einsetzbar
  • Hochwertige und genaue Oberflächen
  • Kosteneinsparung

ACTIONMILL Lollipops

Unsere ACTIONMILL Lollipop-Reihe umfasst die Entgratfräser INOX-Lollipop und Titan-Lollipop, sowie die Vollradiusfräser Lollipop-Z4 260° und Lollipop-Z4 260° cooled.
